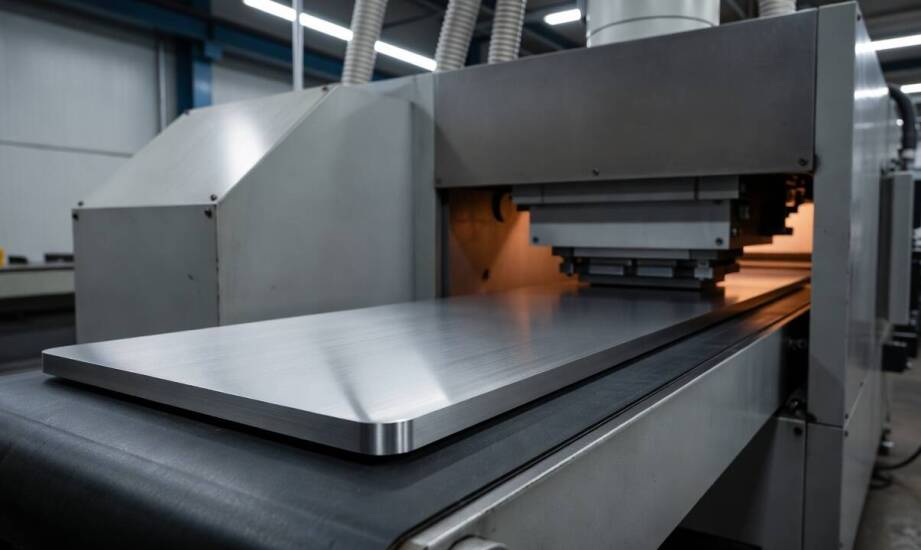

How Does a Multi-Head Machine Maintain a Uniform Sheet Metal Finish in Serial Production?

In serial sheet metal production, the biggest challenge is not removing burrs from a single component but maintaining an identical surface finish across hundreds of parts from the same batch. Even minor differences in texture can create significant issues during downstream manufacturing processes.

Uneven coating adhesion or unexpected welding difficulties are just some of the consequences of process instability. Manual finishing methods cannot guarantee the consistency required as production volumes increase. Even experienced operators become fatigued over time, leading to variations in grinding pressure and minor dimensional deviations.

As a result, modern manufacturing increasingly relies on automated deslagging and finishing systems to ensure stable and predictable production performance throughout the entire line.

Process Parameters That Determine Surface Consistency

The conveyor speed and the selection of abrasive materials have a direct influence on the final texture of processed components. Higher belt speeds, often operating within industrial ranges, increase material removal efficiency and are particularly effective for demanding steel components.

Lower operating speeds make it possible to achieve a finer finish while reducing the risk of excessive heat generation within the material structure. Automated surface grinding also requires the abrasive grade to remain consistent throughout the entire production batch. Any deviation can immediately affect the measurable roughness of the finished sheet.

The working pressure applied by the machining head must be continuously monitored. This parameter determines the balance between effective burr removal and the risk of damaging the edge geometry of the workpiece.

Excessive pressure can lead to uncontrolled edge rounding or damage to thin stainless steel and aluminium sheets. Insufficient pressure may leave thermal-cutting residues on the material.

Machines capable of maintaining constant contact pressure across the full width of the sheet provide repeatable results regardless of the complexity of the component geometry.

Industrial multi-head systems help stabilise processing quality across a wide range of production orders. Each integrated head performs a specific task during a single continuous pass through the machine. The modular tooling arrangement can progress seamlessly from intensive scale removal to fine surface finishing.

This sequential process eliminates the need for repeated handling and repositioning of components on the conveyor system, significantly reducing the risk of operator errors and dimensional inconsistencies between seemingly identical parts.

Processing Laser-Cut Components Compared to Manual Methods

Preparing components immediately after laser cutting involves effective removal of oxide residues and sharp particles created by the localised action of extremely high temperatures. Automated deburring quickly softens sharp edges and standardises component quality before parts move to welding or coating operations.

A properly prepared edge profile improves the adhesion of powder coatings, e-coating systems and hot-dip galvanised finishes. It also improves component fit-up during assembly, welding and structural bonding processes.

Without proper oxide removal, protective coatings may begin to peel prematurely, while welded joints can suffer from reduced performance.

Signs of insufficient manual edge-finishing capacity often appear gradually in production facilities. Variations in finish quality between successive batches and slower production throughput are among the first warning signs for process engineers.

Customer complaints regarding coating defects or reports of operator fatigue and hand vibration issues often indicate the need to implement automated processing systems.

Machines significantly reduce dust generation and vibration exposure. The Polish manufacturer Madora offers GP-series deburring machines in 2Z, 3Z and 4Z configurations, as well as GL 1000 models available in PZ, PZZ and PR variants. These systems combine abrasive belt units with multifunctional disc technologies in a compact design. Their modular architecture allows engineers to adapt machine performance to the demanding requirements of industries such as aerospace and automotive manufacturing.

Repeatability as a Key Requirement in Industrial Production

In advanced manufacturing environments, documented and measurable repeatability is critical throughout every stage of sheet metal finishing.

Maintaining a uniform surface texture is a performance indicator that extends far beyond appearance. A consistently prepared metal surface helps prevent downstream production interruptions and improves overall manufacturing reliability.

Controlled edge rounding enhances the quality of subsequent mechanical joints, improves corrosion protection around component edges and contributes to the long-term durability of the finished products.

The ability to achieve these results consistently is one of the main reasons why automated finishing systems have become a standard part of modern sheet metal processing lines.
